Ball Valves


Premium Ball Valves by Apollo™



FEATURES:

  • Reinforced TFE Seats and Stuffing Box Ring
  • Chromium-plated Ball
  • Blow-out-proof Stem Design
  • Adjustable Packing Gland



MATERIAL LIST:
  • Lever and Grip Steel: Zinc-plated w/ Vinyl
  • Stem Packing: Reinforced TFE
  • Stem Bearing: Reinforced TFE
  • Ball: Chromium-plated Brass
  • Seat (2): Reinforced TFE
  • Retainer: Brass
  • Gland Nut: Brass
  • Stem: Brass
  • Lever Nut: Steel, Zinc-plated
  • Seal (1¼" only): Reinforced TFE
  • Body: Bronze Cast
  • Threaded, 600 PSIG WOG
  • Cold Non-shock
  • 150 PSIG Saturated Steam
  • Vacuum service to 29" Hg


The Original Bronze APOLLO™
Female x Female
Series 70-100

                Series 70-100 Bronze Apollo Ball Valve

PART
NO.		 SIZE "A" "B" "C" "D" "E" Cv
FACTOR		 WT/100
BV-70-101 1/4" 0.37" 1.03" 2.06" 1.75" 3.87"     6.8  60#
BV-70-102 3/8" 0.37" 1.03" 2.06" 1.75" 3.87"     6.8  56#
BV-70-103 1/2" 0.50" 1.12" 2.25" 1.75" 3.87"     9.8  64#
BV-70-104 3/4" 0.68" 1.50" 3.00" 2.12" 4.87"   25.0 139#
BV-70-105 1" 0.87" 1.68" 3.37" 2.25" 4.87"   35.0 172#
BV-70-106 1-1/4" 1.00" 2.00" 4.00" 2.62" 5.50"   47.0   326#
BV-70-107 1-1/2" 1.25" 2.18" 4.37" 3.06" 8.00"   81.0   463#
BV-70-108 2" 1.50" 2.34" 4.68" 3.25" 8.00" 105.0   606#
BV-70-109 2-1/2" 2.50" 3.25" 6.50" 4.12" 8.00" 440.0 1725#
BV-70-100 3" 2.50" 3.37" 6.75" 4.12" 8.00" 390.0 1860#



Series 70-800 Bronze Apollo Ball Valve

Bronze APOLLO™
Male x Female
Series 70-800
PART
NO.		 SIZE "A" "B" "C" "D" "E" Cv
FACTOR		 WT/100
BV-70-801 1/4" 0.31" 1.40" 2.43" 1.75" 3.87"   6.8 63#
BV-70-802 3/8" 0.37" 1.46" 2.50" 1.75" 3.87"   6.8 60#
BV-70-803 1/2" 0.50" 1.68" 2.81" 1.81" 3.87"   9.8 72#
BV-70-804 3/4" 0.68" 2.00" 3.50" 2.12" 4.87" 25.0 142#
BV-70-805 1" 0.87" 2.31" 4.00" 2.25" 4.87" 35.0 193#
BV-70-806 1-1/4" 1.00" 2.31" 4.31" 2.62" 5.50" 47.0 319#




Replacement Handles for Apollo™ Ball Valves

  • Available Sizes:  1/4" to 2"
Replacement Handle - Ball Valve

PART
NO.

Size
BVRH-SM 1/4", 3/8", 1/2"
BVRH-LG 3/4" - 1"
BVRH-XL 1-1/4" - 2"



Miniature Male Ball Valves



FEATURES:

  • Ideal for limited Space
  • Best Choice for Manifold Installation
  • Large Port Forged Brass
  • Chrome-plated Brass Ball
  • Teflon Seats, Stem Packing, and Thrust Washer





MATERIAL LIST:
  • Handle Nut: Coated Steel
  • Handle: Coated Steel
  • Packing Nut: Brass
  • Stem Packing: Teflon
  • Thrust Washer: Teflon
  • Stem: Brass
  • Ball: Chrome-plated Brass
  • Seats: Teflon
  • Body: Forged Brass
  • End Adapter: Forged Brass

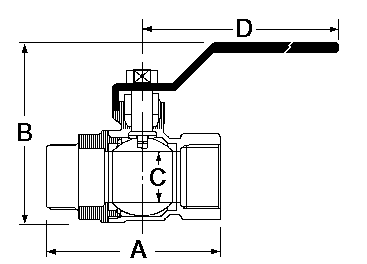

Model BVT-900
Male x Female

BVT-900 Mini Ball Valve
PART
NO.		 SIZE DIMENSIONS
"A" "B" "C" "D"
BVT-900-18 1/8" 1.80" 1.41" 0.29" 1.72"
BVT-900-14 1/4" 1.80" 1.41" 0.32" 1.65"
BVT-900-38 3/8" 2.15" 1.70" 0.39" 3.06"
BVT-900-12 1/2" 2.50" 1.86" 0.50" 3.06"
BVT-900-34 3/4" 2.90" 2.50" 0.69" 3.81"

BVT-900-1

 1" 3.33" 2.78" 0.89" 3.81"







Model BVT-900T
Male x Female

BVT-900T Mini Ball Valve w/ T-Handle
PART
NO.		 SIZE DIMENSIONS
"A" "B" "C"
BVT-900T-18 1/8" 1.80" 1.35" 0.29"
BVT-900T-14 1/4" 1.80" 1.35" 0.32"
BVT-900T-38 3/8" 2.15" 1.88" 0.39"
BVT-900T-12 1/2" 2.50" 2.00" 0.50"
BVT-900T-34 3/4" 2.90" 2.30" 0.69"




Economy Ball Valves



FEATURES:

  • Available Sizes:  1/4" to 2"

  • Threaded Ends to ANSI B1.20.1

  • Each Valve Individually Tested

  • Hard Chromium Plated Solid Ball

  • 600 psi Non-Shock Cold Water/Oil/Gas (WOG)

  • 150 psi Saturated Steam

  • Forged Construction - Greater Strength

  • Bottom Entry, Blow-out Proof Stem

  • Double Stem Packing, Teflon Seats

  • Operating Temperature: Min. -20°F (-40°C); Max. 248°F (120°C)




Female x Female:
Full Port

Full Port Female to Female Economy Ball Valve

PART
NO.

SIZE

 DIMENSIONS
"A" "B" "C" "E" "CH"
EBV-14 1/4" 2.28" 1.49" 3.35" .43" 0.74"
EBV-38 3/8" 2.37" 1.57" 3.35" .43" 0.86"
EBV-12 1/2" 2.28" 1.49" 3.35" .61" 0.94"
EBV-34 3/4" 2.87" 1.57" 3.35" .64" 1.22"
EBV-1 1" 3.42" 1.93" 5.20" .75" 1.50"
EBV-114 1-1/4" 3.94" 2.36" 4.72" .77" 1.89"
EBV-112 1-1/2" 4.25" 3.00" 6.34" .77" 2.12"
EBV-2 2" 4.96" 2.95" 6.34" .79" 2.63"




Male x Female:
Full Port

Full Port Economy Ball Valve Female to Male

PART
NO.

SIZE

 DIMENSIONS
"A" "B" "C" "E" "E1" "CH1" "CH2"
EBV-14MXF 1/4" 2.28" 1.49" 3.35" .46" .51"   .55" 0.74"
EBV-38MXF 3/8" 2.37" 1.57" 3.35" .46" .51"   .71" 0.86"
EBV-12MXF 1/2" 2.28" 1.49" 3.35" .61" .59"   .85" 0.96"
EBV-34MXF 3/4" 2.87" 1.57" 3.35" .66" .63" 1.10" 1.22"
EBV-1MXF 1" 3.42" 1.93" 5.20" .77" .75" 1.36" 1.50"
EBV-114MXF 1-1/4" 3.94" 2.36" 4.72" .79" .76" 1.69" 1.89"
EBV-112MXF 1-1/2" 4.25" 3.00" 6.34" .81" .76" 2.12" 2.12"
EBV-2MXF 2" 4.96" 2.95" 6.34" .84" .76" 2.40" 2.63"



All PS&E ball valves are comparable with most major brands including:

A-T Controls
American Valve
Anderson Brass
Automated Valve
Bee Valve
Dahl-Vaughn
DynaQuip
Fasani
Flodyne
Gemini
Ham-Let
Kantleak
KBI/King Brothers
Kelly Pipe
KTM
M&M
Marwin
MCF
Metso
Mogas
Neotecha
PBM
Simtech
Specialty Mfg.
Stainless Valve
Sureflow
Trans-Valve
Triad
Tyco
Valterra
Velan
Warren Alloy
Webstone
