CAED Technology™
Nozzle Tips

CAED Technology Nozzle Tips

Having stringing or drooling problems with your Nylon? Cold Slugs limiting your ABS part production? CAED Technology nozzle tips can eliminate these and other typical processing problems in your injection molding application. They are designed to fit all brands of molding machines, from Van Dorn, Cincinnati and Nissei to Toshiba, Sumitomo and Haitian.

Plastic Services & Equipment is proud to have designed and built the highest performance nozzle tips available for processing of difficult plastic materials. CAED Technology nozzle tips contain proprietary flow geometry, machining and surface finish technology that allow you the end user to increase productivity and decrease scrap. The nozzle tips can pay for themselves in just a few hours of increased production.

If you are having a problem with Stringing, Drool or Cold Slugs, think CAED Technology.

Design Highlights:

Standard and Extended Lengths

Beryllium Copper or S-5 Tool Steel

Thru-hardened for Superior Life

Fits all Replaceable Tip Nozzles

7/8"-14 Thread

1/2" Rear Opening

Lengths from 1-1/2" to 4-3/4"

Orifice Sizes from 1/16" to 1/2"

Made in the U.S.A.

Standard Length
Description	Construction	O.A.L.
Standard Length Nozzle Tip	Beryllium Copper	1-1/2"
Standard Length Nozzle Tip	S-5 Steel	1-1/2"

Extended Length
Description	Construction	O.A.L.
Extended Length Nozzle Tip	Beryllium Copper	2-3/4"
		3-3/4"
		4-3/4"
	S-5 Steel	2-3/4"
		3-3/4"
		4-3/4"

Type: Nylon or ABS?
"Nylon" = Polyamides and Other Low-Viscosity Materials
"ABS" = ABS, PVC and Other Shear-Sensitive Materials

Material: Beryllium Copper or S-5?
"B" = Beryllium Copper to Control Stringing and Drooling with Nylon
"S5" = S-5 Tool Steel to Minimize Cold Slugs with ABS

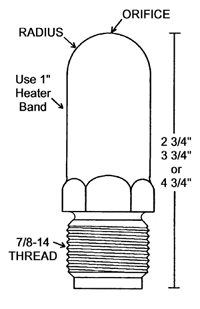

Extended Nozzle Tip

EXTENDED LENGTH

Standard Nozzle Tip

STANDARD LENGTH
