Screw Measuring Micrometers

Screw O.D. Measuring Micrometers allow for precision
measuring of flighted screws to determine wear increments.
Deluxe heat insulated forged steel frame and carbide tipped construction are designed for solid performance
and long life. The precision-welded bar is placed at 0.000" or 0.00mm point for completely accurate measuring.
Available with standard Thimble & Sleeve readout, Visual Odometer readout or Digital readout.
PS&E Screw O.D. Measuring Micrometers are an invaluable addition to every maintenance toolbox.

Standard Imperial

Premium Imperial

Standard Metric

Premium Metric

Standard Imperial Micrometer
w/ Thimble & Sleeve Readout

PART NO.	SCREW O.D.
PSE-01*	0" - 1"
PSE-12	1" - 2"
PSE-23	2" - 3"
PSE-34	3" - 4"
PSE-45	4" - 5"
PSE-56	5" - 6"
PSE-67	6" - 7"
PSE-78	7" - 8"
PSE-89	8" - 9"

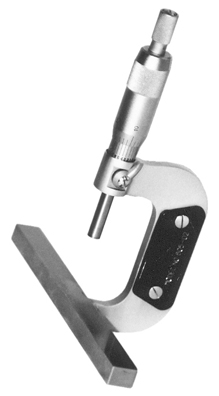

Standard Imperial Readout OD Screw Measuring Micrometer

*Standard not included

Standard Metric Readout OD Screw Measuring Micrometer

PART NO.	SCREW O.D.
PSE-0025*	0mm - 25mm
PSE-2550	25mm - 50mm
PSE-5075	50mm - 75mm
PSE-75100	75mm - 100mm
PSE-100125	100mm - 125mm
PSE-125150	125mm - 150mm
PSE-150175	150mm - 175mm
PSE-175200	175mm - 200mm
PSE-200225	200mm - 225mm

*Standard not included

Standard Metric Micrometer
w/ Thimble & Sleeve Readout

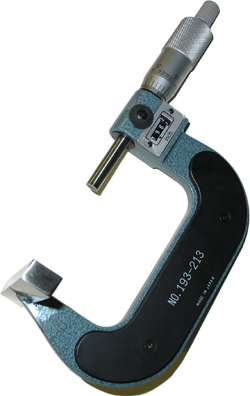

Premium Imperial Micrometer
w/ Visual Odometer Readout

PART NO.	SCREW O.D.
PSE-01MIT*	0" - 1"
PSE-12MIT	1" - 2"
PSE-23MIT	2" - 3"
PSE-34MIT	3" - 4"
PSE-45MIT	4" - 5"
PSE-56MIT	5" - 6"
PSE-67MIT	6" - 7"
PSE-78MIT	7" - 8"
PSE-89MIT	8" - 9"

*Standard not included

PART NO.	SCREW O.D.
PSE-0025MIT*	0mm - 25mm
PSE-2550MIT	25mm - 50mm
PSE-5075MIT	50mm - 75mm
PSE-75100MIT	75mm - 100mm
PSE-100125MIT	100mm - 125mm
PSE-125150MIT	125mm - 150mm
PSE-150175MIT	150mm - 175mm
PSE-175200MIT	175mm - 200mm
PSE-200225MIT	200mm - 225mm

*Standard not included

Premium Metric Micrometer
w/ Visual Odometer Readout

PS&E micrometers are comparable to the following brands: ALFA, Azia, Brown & Sharpe, Dorsey, Empire, Facom, Fowler, General, Kafer, Mahr, Meda, Mitutoyo, Moore & Wright, Newport, PI, Physik Instrumente, Spectra-Physics, Starrett, Tesa, ThorLabs, Ultra, UPM, VIS, Westward, Yorkshire, ZZW.

Your Next Barrel or Screw Is Probably On Our Shelf...
Call Today To Check Our Inventory!
