Hose Clamps

Ear Clamps
Ear Clamp Kits

Ear Clamp Pincers
Heavy Duty T-Bolt Clamps

Spiral Double-Bolt Clamps
Standard Hose Clamps
Worm Gear Clamps


General Purpose "Worm Gear" Hose Clamps

  • Stainless steel band.
  • Can be used on any hose.
  • Available with stainless steel or plated carbon screws.
  • 5/16" Hex
  • Sizes 7/32" to 5". Other sizes available upon request.
  • Purchase the most economical clamps from PS&E.

Packaging:  Sold individually.


Hose Clamp
Full Stainless Steel Clamp
PART
NO.
FITS HOSE O.D. SIZE
FROM TO
SSHC-6* 7/16" 25/32"
SSHC-8 1/2" 29/32"
SSHC-10 9/16" 1-1/16"
SSHC-12 11/16" 1-1/4"
SSHC-16 13/16" 1-1/2"

*Narrow Band - Mini  Clamp






Hose Clamp

Partial Stainless Steel Clamp
PART
NO.
FITS HOSE O.D. SIZE
FROM TO
PSHC-4* 7/32" 5/8"
PSHC-6 5/16" 7/8"
PSHC-8 7/16" 1"
PSHC-10 9/16" 1-1/8"
PSHC-12 9/16" 1-1/4"
PSHC-16 11/16" 1-1/2"
PSHC-20 3/4" 1-3/4"
PSHC-24 1-1/16" 2"
PSHC-28 1-5/16" 2-1/4"
PSHC-32 1-9/16" 2-1/2"
PSHC-36 1-13/16" 2-3/4"
PSHC-40 2-1/16" 3"
PSHC-44 2-5/16" 3-1/4"
PSHC-48 2-9/16" 3-1/2"
PSHC-52 2-13/16" 3-3/4"
PSHC-64 3-9/16" 4-1/2"
PSHC-72 4-1/8" 5"

*Narrow Band - Mini Clamp with 1/4" hex


Ear Clamps

  • Zinc plated.
  • Fast, easy installation -- won't loosen up in service.
  • Economical and tamper proof.
  • Safe -- no protruding bands to get cut or hung up on.
  • Excellent for use as a safety clamp with push-on hose and fittings.
  • Available in 1-ear or 2-ear styles.

Packaging:  Sold individually.

1-ear Clamp
1-ear Clamp

2-ear Clamp
2-ear Clamp

1 - Ear Clamp Zinc Plated
PART
NO.
NOMINAL
SIZE
CLAMPING
RANGE
EC113 7/16" .381 - .444"
EC145 9/16" .496 - .571"
EC170 11/16" .594 - .669"
EC185 23/32" .618 - .728"
EC198 3/4" .669 - .779"
EC210 13/16" .716 - .827"
EC241 15/16" .839 - .949"



2 - Ear Clamp Zinc Plated
PART
NO.
NOMINAL
SIZE
CLAMPING
RANGE
EC0507 1/4" .197 - 276"
EC0811 3/8" .315 - .433"
EC1113 1/2" .433 - .512"
EC1315 9/16" .512 - .591"
EC1518 5/8" .591 - .708"
EC1720 3/4" .669 - .787"
EC2023 7/8" .787 - .905"
EC2225 15/16" .866 - .984"
EC2327 1" .905 - 1.063"
EC2528 1-1/16" .984 - 1.102"
EC2831 1-3/16" 1.063 - 1.220"
EC3134 1-5/16" 1.220 - 1.339"
EC3740 1-1/2" 1.457 - 1.575"



Other Sizes Available Upon Request


 Ear Clamp Pincers

  • Used for manual installation and removal of ear clamps
  • Available in two styles:  ear clamp pincers or side jaw pincers
  • Dual-directional pincers enable you to apply clamps from two different directions (or angles)

Packaging:  Sold individually.

Pincers

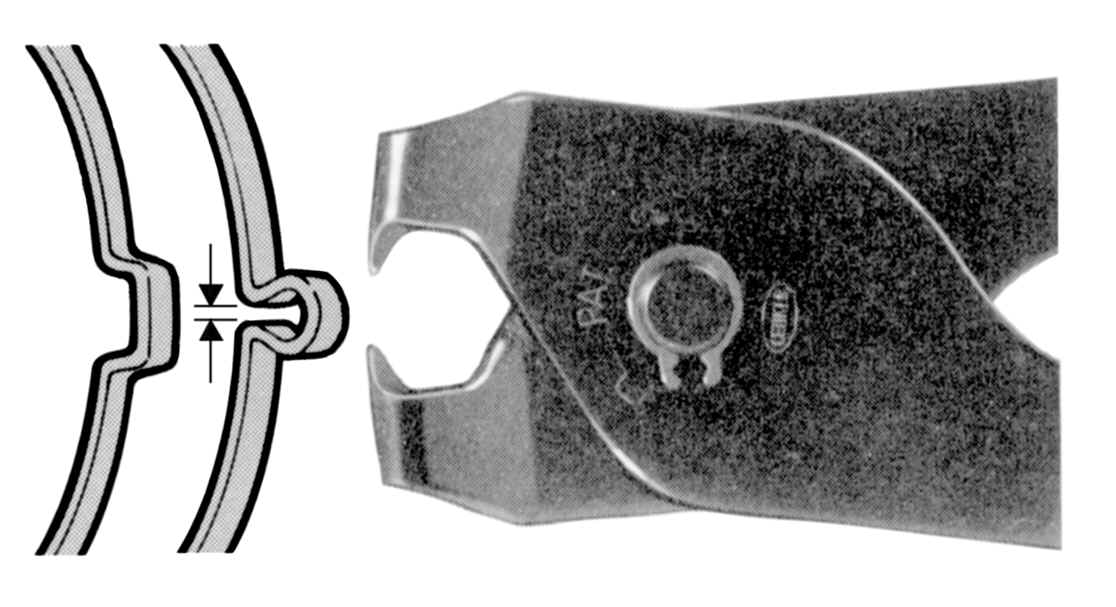

Pincer Detail on Ear Clamp


PART
NO.
DESCRIPTION
ECP-1098 Ear Clamp Pincers
ECP-1099 Side Jaw Pincers



Maintenance Ear Clamp Kits

2-ear clamp kits available with Zinc Plated or Stainless Steel clamps.  Each Service Kit contains:

  • 15 pcs. EC-0709 -  5/16" clamp
  • 15 pcs. EC-0911 -  7/16" clamp
  • 15 pcs. EC-1113 -  1/2" clamp
  • 15 pcs. EC-1315 -  9/16" clamp
  • 15 pcs. EC-1518 -  5/8" clamp
  • 12 pcs. EC-1720 -  3/4" clamp
  • 12 pcs. EC-2023 -  7/8" clamp
  • 12 pcs. EC-2225 -  15/16" clamp
  • 12 pcs. EC-2327 -  1" clamp
  • 1 pc.     ECP-1098 pincer
Clamp Kit
PART
NO.
DESCRIPTION
ECSK1098 Zinc plated kit w/ECP-1098 pincers
ECSK1098SS Stainless Steel kit w/ECP-1098 pincer


Spiral Double-Bolt Clamps
The ultimate in clamping for your vacuum hose.
  • Available in clockwise or counter-clockwise spiral.
  • Total 360° vacuum seal.
  • Recommended for convoluted hoses; sizes 1½"-12".
  • Reusable - not a throw-away clamp
  • Lifetime heavy duty clamp.

Packaging:  Sold individually.

Spiral Hose Clamp


PART
NO.
FITS HOSE
I.D. SIZE
Counter-clockwise
Spiral Hose
Clockwise
Spiral Hose
SDBC150 SDBC150C 1-1/2", 39mm
SDBC2 SDBC2C 2", 45mm
SDBC225

--

2-1/4", 57mm
SDBC250 SDBC250C 2-1/2"
SDBC3 SDBC3C 3"
SDBC350 SDBC350C 3-1/2"
SDBC4 SDBC4C 4"

Other Sizes Available Upon Request


Heavy Duty T-Bolt Clamp
Stainless Steel band available with Stainless Steel or Carbon Steel Bolt and Nut
  • Permanent and semi-permanent applications
  • Availabel in size ranges from 2-1/32" to 9-23/32"
  • Reusable - not a throw-away clamp
  • Ideal for high corrosion environments
  • Perfect for rubber hose and PVC vacuum hose

Packaging:  Sold individually.



Heavy Duty T-Bolt Clamp




PS&E clamps are comparable with the following brands: Amflow, Androck, APS, Advanced, Baxter, Breeze, BIP, Cambridge, Campbell, Clampco, Clamps, Inc., Dixon/Dixon Valve, Dundas Jafine, EFC, Fluidwell, General Clamp, Hydro-Craft, Ideal, Impulse, JCC, Kanaflex, Klipco, Lambro, Micro Group, Midland, Monoxivent, Murray, Nissei, Nordex, Norma, Oetiker, Ottawa, Parker-Hannifin, Pioneer, Precision, Protex, Rostra, Royal, Stepless, SuperClamp, Sutton Clark, Tork, Tridon, Vibrant, WAC.
