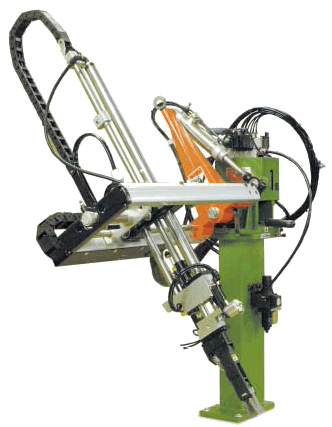

The TSP Series Sprue Picker is a cost effective and reliable means of
providing 100% runner and part separation for your molding
operations. Simple and easy to operate, you will maintain the fastest
possible molding cycles using the TSP Series Sprue Picker.

Features:

• Smooth, Clean Design
• For 20 to 550 Ton Machines
• Minimal Take-out Time
• Low Maintenance
• Simple to Operate

TSP Series Sprue Pickers are effective and reliable, proving 100% runner and part separation for all molding operations.  They require no floor space since the TSP Series mounts easily to the stationary platen.

Simple to set-up and easy to operate via the hand-held pendant,  the TSP Series assures the fastest possible molding cycle and instant notification if sprue is not verified by the sensing circuit.

Available options for the TSP Series Sprue Picker include; Wrist-flip kit for 90° position of the runner, second descent slowdown, pressure regulator for gripper mechanism, Venturi vacuum kit, end-of-arm tooling for light duty part removal, and spare part kits.

• Compressed Air: 80 PSI @ 3 CFM
  (Air Filter, Regulator, and OSHA Approved Safety Shut-Off Valve Provided)


• Electrical: 115 volts @ 5 amps
                  220 volts @ 2.5 amps
