Water-Cooled

Central Chillers (MW Series)

5 to 180 Tons Capacity








The MW Series Central Chiller provides precise temperature control
from an economically affordable and reliable unit. Perfect for plastic injection
molding, blow molding, extrusion and other industrial applications.



Features:
  • 5 to 180 Tons Capacity
  • Multiple refrigerant Zones
  • Water-Cooled Condenser
  • Process Temperatures from 20 F to 65 F
  • Galvanized Steel Frame
  • Nema 12 Electrical Cabinet
  • Coolant flow switch and freezestat safety
  • Sight glass with moisture indicator
  • Removable condenser caps for easy service
  • Excellent for start-up installation or expansion of current systems

The water-cooled condenser has removable caps and  compressor suction/discharge valves for easy access and servicing. A brazed plate evaporator provides efficient heat exchange.  The galvanized steel frame offers a sturdy construction.

Controlled by a mechanical thermostat, the MW Series central chiller includes a coolant flow switch, coolant freezestat, compressor motor overload protection, refrigerant high and low pressure switches, and a refrigerant pressure release valve for safety.

The 5 - 40 ton single zone, 20 - 80 ton dual zone, and 90 - 120 ton triple zone models are equipped with a braze plate evaporator.  Shell and tube evaporators are on the 5 - 40 ton single zone, 100 - 120 ton dual zone, and 90 120 ton triple zone models. Condenser manifolds are on all dual and triple zone with single supply and return ports.

Hermetic scroll compressors on 5 - 30 ton single zone models and 20 - 60 dual zone models. Semi-Hermetic compressors used on 35 - 60 ton single zone models, 70 - 120 ton dual zone models, and 90 - 180 tone triple zone models. Dual and triple zone compressors are staged individually.

All single zone models are controlled by a mechanical thermostat.  A microprocessor-based multi-zone thermostat controls all dual and triple zone chillers.

Water-cooled models are recommended where adequate condensing water supplies are available from tower or city water sources.

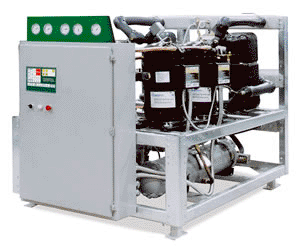

MW Series Water-Cooled Chiller - 5 to 180 Tons Capacity

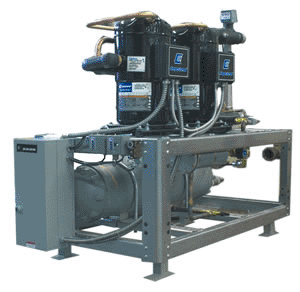

MW Series Water-Cooled Chiller 5 to 40 Tons Capacity


MW SERIES SPECIFICATIONS
SINGLE ZONE MODELS

  5C 7.5C 10C 15C 20C 25C 30C 35C 40C 50C 60C
COMPRESSOR CAPACITY 1 5.5 9.1 11.5 15.0 19.0 25.0 30.0 36.0 40.0 49.8 57.6
QUANTITY 1 1 1 1 2 2 2 1 1 1 1
HP (each) 5.0 7.5 10.0 15.0 10.0 13.0 15.0 35.0 40.0 50.0 60.0
CONNECTION
SIZE
PROCESS 1-1/4" 1-1/4" 1-1/4" 2" 2" 2-1/2" 2-1/2" 2-1/2" 2-1/2" 3" 3"
CONDENSING 3/4" 1" 1" 1-1/4" 1-1/4" 1-1/2" 2" 2" 3" 3" 3"
WATER FLOW
REQUIREMENTS
(GPM)
PROCESS 13 22 28 36 47 60 72 86 101 120 138
CITY 2 9 15 18 23 29 38 45 54 63 75 87
TOWER 3 18 30 36 45 58 75 90 108 126 149 173
AMPERAGE 4 230/3/60 22 31 43 56 66 83 94 107 142 180 224
460/3/60 10 16 22 28 33 42 47 54 71 90 112
575/3/60 8 13 17 25 28 34 39 43 57 75 80
REFRIGERANT (Type HCFC) 22 22 22 22 22 22 22 22 22

22

22
DIMENSIONS

HEIGHT

52" 52" 52" 52" 52" 57" 57" 57" 57" 57"

57"

WIDTH 24" 24" 24" 54" 24" 29" 29" 29" 36" 36" 36"
DEPTH 62" 62" 62" 70" 70" 70" 70" 84" 84" 84" 84"
WEIGHT (Shipping) 450 lbs 525 lbs 545 lbs 845 lbs 885 lbs 1040 lbs 1100 lbs 1150 lbs 1200 lbs 1300 lbs 1400 lbs



MW SERIES SPECIFICATIONS
DUAL ZONE MODELS

  20CC 30CC 40CC 50CC 60CC 70CC 80CC 100CC 120CC
COMPRESSOR CAPACITY 1 23.0 30.0 38.0 60.0 60.0 70.0 80.0 100.0 115.2
QUANTITY 2 2 2 2 2 2 2 2 2
HP (each) 10.0 15.0 10.0 15.0 15.0 35.0 40.0 50.0 60.0
CONNECTION
SIZE
PROCESS 2" 2-1/2" 2-1/2" 3" 3" 4" 4" 4" 4"
CONDENSING 1-1/2" 3" 3" 3" 3" 3" 3" 4" 4"
WATER FLOW
REQUIREMENTS
(GPM)
PROCESS 55 72 96 144 144 168 192 240 277
CITY 2 36 45 57 75 90 105 120 150 173
TOWER 3 72 90 115 180 150 210 240 300 346
AMPERAGE 4 230/3/60 85 113 152 195 232 214 284 360 448
460/3/60 43 56 76 98 117 107 142 180 224
575/3/60 34 46 53 68 75 86 114 144 180
REFRIGERANT (Type HCFC) 22 22 22 22 22 22 22 22 22
DIMENSIONS

HEIGHT

57" 57" 57" 57" 57" 57" 57" 70" 70"
WIDTH 48" 48" 48" 52" 52" 72" 72" 90" 90"
DEPTH 76" 76" 76" 79" 79" 84" 84" 115"" 115"
WEIGHT (Shipping) 1200 lbs 1800 lbs 1900 lbs 2350 lbs 2350 lbs 2500 lbs 2600 lbs 3450 lbs 3700 lbs


MW SERIES SPECIFICATIONS
TRIPLE ZONE MODELS

  105CCC 120CCC 150CCC 180CCC
COMPRESSOR CAPACITY 1 103.0 120.0 149.5 172.8
QUANTITY 3 3 3 3
HP (each) 35.0 40.0 50.0 60.0
CONNECTION
SIZE
PROCESS 4" 4" 6" 6"
CONDENSING 4" 6" 6" 6"
WATER FLOW
REQUIREMENTS
(GPM)
PROCESS 260 288 359 415
CITY 2 162 180 224 259
TOWER 3 324 360 443 518
AMPERAGE 4 230/3/60 321 426 540 672
460/3/60 161 213 270 336
575/3/60 130 170 216 269
REFRIGERANT (Type HCFC) 22 22 22 22
DIMENSIONS

HEIGHT

85" 85" 85" 85"
WIDTH 73" 73" 73" 73"
DEPTH 130" 130" 130" 130"
WEIGHT (Shipping) 3450 lbs 3600 lbs 3900 lbs 4200 lbs




1 Tons Capacity at 12,000 BTU/ton @ 50F LWT @ 105 F Condensing Temperature. (Capacity may be +/- 5%)
2 Flow Rate based on 60F city water source @ 20 psi w/clean condenser
3 Flow Rate based on 85F tower water source @ 20 psi w/clean condenser
4 Full Load Amps shown. No allowance for in-rush. Full Amps are higher than Run Load Amps and must be used for sizing disconnects and supply wiring
