Ceramic Heater Bands
The preferred choice for plastic molding.




Purchase the Best Ceramic Heaters

Standard
  • 5/8" thick.
  • 1/4" thermal insulation.
  • Long life.
  • Lower energy costs.
  • Hi-temp: up to 1400°F.
  • Easy installation.
  • Efficient in wide widths.
  • Fewer bands per installation.

Standard Ceramic Band

Insulation Plus™
  • 7/8" thick.
  • An additional 1/4" thermal insulation in a separate channel.
  • Total 1/2" insulation.
  • Energy savings up to 30%.
  • Cooler ambient temperatures.

Insulation Plus

Super Insulation Plus
  • 1¼" thick.
  • 7/8" total insulation built in.
  • Eliminate blankets and insulated shrouds or use (less expensive) uninsulated shrouds.

Super Insulation Plus

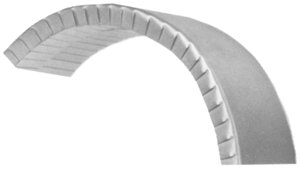

Ultra Thin Line
  • Maximum 3/8" thick.
  • Low mass.
  • Quick response for critical hi-temp molding operations.
  • Up to 1400°F and 60 watts/inches2.

Ultra Thin Line

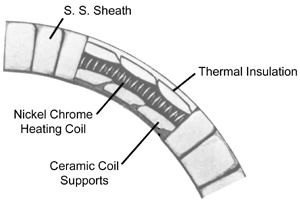

STAINLESS STEEL SHEATH - resists rust and high temperatures, and provides firm mechanical support.  Easily wraps around barrel due to fluted construction.

THERMAL INSULATION - ¼" of ceramic fiber prevents heat loss, thereby lowering energy costs.

CERAMIC COIL SUPPORTS - designed for their dielectric and thermoconductive characteristics, the interlocking feature provides flexibility so band wraps easily around barrel.

NICKEL-CHROME HEATING COIL - precision wound, helical construction gives extended service.  A heavier weight than found in mica or other conventional heaters.

Specifications
Temperatures:
Up to 1400°F
Watt Density:
Up to 45 watts/inches2
Voltage:
Up to 480V (single or three phase)
Resistance-Tolerance:
NEMA standard +10% -5%
Wattage Tolerance:
NEMA standard +5% -10%
Maximum Amperage:
25/circuit
Insulation:
Available in both standard ¼" and Insulation Plus ½" construction
Sizes:
2" dia. and up; 1½" width and up (in ½" increments)
Terminals:
¼-20 post terminals standard
Sheath:
Stainless steel
Lock-up:
Flange type standard
Maximum I.D.:
Consult PS&E
Standard Width Increments:
1/2"
Standard Gap When Tightened:
1/4"
Thickness with ¼" Insulation:
5/8"
Thickness with ½" Insulation:
7/8"





Standard OEM Ceramic Heater Bands
  • 5/8" thick.
  • 1/4" thermal insulation.
  • Long life.
  • Lower energy costs.
  • Hi-temp: up to 1400°F.
  • Easy installation.
  • Efficient in wide widths.
  • Fewer bands per installation.



Standard Ceramic Band
PS&E
PART NO.
OEM
PART NO.
I.D. WIDTH VOLTS WATTS CONSTRUCTION
EGAN RECIPROSCREW MACHINES
5CS001B 308443-2 5-1/2" 4" 230/460 1500 TB @ 180°, FLANGE @ 45°, 3/4" TC Hole
5CS002B 308442-2 5-1/2" 4-1/2" 230/460 1500 TB @ 180°, FLANGE @ 45°, 3/4" TC Hole
6CS001B 306708-3 6" 5-1/2" 230/460 2000 TB @ 180°, FLANGE @ 45°, 3/4" TC Hole
6CS002B 306709-3 6" 6" 230/460 2000 TB @ 180°, FLANGE @ 45°, 3/4" TC Hole
7CS001B 306795-3 7-1/2" 4-1/2" 230/460 2000 TB @ 180°, FLANGE @ 45°, 3/4" TC Hole
7CS002B 223462-1 7-1/2" 5-1/2" 230/460 2500 TB @ 180°, FLANGE @ 45°, 3/4" TC Hole
9CS001B 223463 9" 5" 230/460 2500 TB @ 180°, FLANGE @ 45°, 3/4" TC Hole
9CS002B 308440-2 9" 5-1/2" 230/460 3000 TB @ 180°, FLANGE @ 45°, 3/4" TC Hole
11CS001B 322311-2 11" 5" 230/460 4000 TB @ 180°, FLANGE @ 45°, 3/4" TC Hole
12CS001B 223466-1 12" 6" 230/460 4000 TB @ 180°, FLANGE @ 45°, 3/4" TC Hole

FARREL MACHINES

3CS001B 293923-917-3 3-1/2" 3" 230/460 650 LP Box w/BX Clamp, 54" Flex Leads
4CS001B 293923-902-5 4-1/2" 4-1/2" 230/460 1400 LP Box w/BX Clamp, 72" Flex Leads
6CS003B 293923-840-1 6" 5" 230/460 1600 LP Box w/BX Clamp, 60" Flex Leads
6CS004B 293923-844-4 6-1/2" 6" 230/460 2000 LP Box w/BX Clamp, 72" Flex Leads
7CS003B 293923-848-7 7" 5-1/2" 230/460 2000 LP Box w/BX Clamp, 72" Flex Leads
7CS004B 293923-852-5 7-1/2" 7" 230/460 2600 LP Box w/BX Clamp, 78" Flex Leads
8CS001B 293923-856-8 8" 6-1/2" 230/460 2600 LP Box w/BX Clamp, 78" Flex Leads
8CS002B 293923-859-2 8-1/4" 7-1/2" 230/460 3100 LP Box w/BX Clamp, 90" Flex Leads
8CS003B 293923-862-2 8-3/4" 9" 230/460 4100 LP Box w/BX Clamp, 108" Flex Leads
9CS003B 293923-866-5 9" 8-1/2" 230/460 3900 LP Box w/BX Clamp, 90" Flex Leads
9CS004B 293923-870-3 9-3/4" 10" 230/460 5200 LP Box w/BX Clamp, 120" Flex Leads
10CS001B 293923-874-8 10" 5" 230/460 2800 LP Box w/BX Clamp, 108" Flex Leads

HUSKY MACHINES

3CS002B 3831 3-1/2" 4-1/2" 220/240 1200 Term Box, 18" SS Overbraid Leads
4CS002B 4850 4" 4" 240 1200 Term Box, 75" SS Overbraid Leads
4CS003B 8694 4" 10-1/2" 240 5000 Term Box, 1-1/8 TC Hole
4CS004B 8836 4-1/2" 9-1/4" 240 2500 Term Box, 1-1/8 TC Hole
4CS005B 8835 4-1/2" 10-1/2" 240 5000 Term Box, 1-1/8 TC Hole
5CS003B 601731 129mm 254mm 240 6000 Term Box, 1-1/8 TC Hole
5CS004B 600648 130mm 274mm 240 5000 Term Box, 1-1/8 TC Hole
5CS005B 3832 5-1/4" 1-1/2" 220/240 900 Term Box, 21" SS Overbraid Leads
5CS006B 4849 5-1/2" 2-1/2" 240 1800 Term Box, 72" SS Overbraid Leads
6CS005B 600649 154mm 260mm 240 5000 Term Box, 1-1/8" TC Hole
7CS005B 601546 190mm 90mm 240 3750 Term Box, 90" SS Overbriad Leads

TRUEBLOOD MACHINES

1CS001B 112-21006 1-3/4" 1" 240 260 12" SS Overbraid Leads
2CS001B 112-21003 2-1/2" 1" 240 375 12" SS Overbraid Leads
3CS003B N/A 3" 1" 240 500 12" SS Overbraid Leads
3CS004B 112-21005 3" 1" 230 500 12" SS Overbraid Leads3CS005B
3CS005B 112-21069 3-1/2" 4-1/2" 230 1000 TB @ 180°, FLANGE @ 45°, 3/4" TC Hole
4CS006B 112-21009 4-1/2" 4" 230 1000 TB @ 180°, FLANGE @ 45°, 3/4" TC Hole
5CS007B 112-21010 5-1/2" 4" 230 1500 TB @ 180°, FLANGE @ 45°, 3/4" TC Hole
6CS006B 112-21011 6" 6" 230 1500 TB @ 180°, FLANGE @ 45°, 3/4" TC Hole

VAN DORN MACHINES

3CS006B 64890-B 3-5/8" 1-1/2" 230 625 Post Terminals w/Terminal Box
4CS007B 66952-B 4" 1-1/2" 230 625 Post Terminals w/Terminal Box
4CS008B 67736-B 4" 2" 230 1250 4-Post Terminals, 2-Circuit W/Terminal Box
5CS008B 64584-B 5-1/4" 1-1/2" 230 600 Post Terminals w/Terminal Box
5CS009B 77685-B 5-1/4" 1-1/2" 230 1000 Post Terminals w/Terminal Box
5CS010B 312604-B 5-1/4" 3" 460 1700 Post Terminals w/Terminal Box
5CS011B 312605-B 5-1/4" 4-1/2" 230 2400 Post Terminals w/Terminal Box
5CS012B 68105-B 5-3/4" 1-1/2" 230 600 Post Terminals w/Terminal Box
6CS007B 66821-B 1-1/2" 1-1/2" 230 1000 Post Terminals w/Terminal Box
6CS008B 68103-B 6-3/4" 1-1/2" 230 815 Post Terminals w/Terminal Box
6CS009B 66822-B 6-3/4" 1-1/2" 230 1000 Post Terminals w/Terminal Box




Insulation Plus™ OEM Ceramic Heater Bands
  • 7/8" thick.
  • An additional 1/4" thermal insulation in a separate channel.
  • Total 1/2" insulation.
  • Energy savings up to 30%.
  • Cooler ambient temperatures.

Insulation Plus Ceramic Heater

PS&E
PART NO.
OEM
PART NO.
I.D. WIDTH VOLTS WATTS CONSTRUCTION
BOY MACHINES
BSX10642 N/A 42mm 32mm 240 250 Type CLW Sealed - 48" SS Leads
2CI001J N/A 75mm 172mm 460 1420 Post Terminal w/Low Profile Box w/TC Holes
4CI002J N/A 110mm 260mm 460 3205 Post Terminal w/Low Profile Box w/TC Holes

CINCINNATI MILACRON MACHINES

4CI001B 3937946 4" 3" 240/480 950 Post Terminals, 180° from Gap
5CI001B 3942414 5" 1-1/2" 480 770 Post Terminals, 180° from Gap
5CI005B 3955644 5" 2" 480 800 Post Terminals, 180° from Gap
5CI006B 3957387 5" 3" 480 1200 Post Terminals, 180° from Gap
5CI007B 3957286 5-1/2" 1-1/2" 480 600 Post Terminals, 180° from Gap
5CI008B 3957288 5-1/2" 3" 480 1200 Post Terminals, 180° from Gap
6CI003B 395286 6-1/2" 1-1/2" 240 1000 Post Terminals, 180° from Gap
6CI004B 3942413 6-1/2" 1-1/2" 480 1000 Post Terminals, 180° from Gap
6CI007B 3955584 6-1/2" 2" 480 1000 Post Terminals, 180° from Gap
6CI009B 3958121 6-1/2" 3" 480 2500 Post Terminals, 180° from Gap
7CI004B 3950601 7" 1-1/2" 480 1400 Post Terminals, 180° from Gap
7CI005B 3954239 7-1/2" 3" 240 1800 Post Terminals, 180° from Gap
7CI006B 3958274 7-1/2" 3" 480 1800 Post Terminals, 180° from Gap
8CI001B 3953856 8" 1-1/2" 240 770 Post Terminals, 180° from Gap
8CI002B 3942415 8" 1-1/2" 480 770 Post Terminals, 180° from Gap
8CI003B 3942354 8" 1-1/2" 460 800 Post Terminals, 180° from Gap
8CI004B 3954087 8" 1-1/2" 480 1000 Post Terminals, 180° from Gap
8CI005B 3937945 8" 3" 240/480 1900 Post Terminals, 180° from Gap
8CI007B 3955555 8" 3" 240 2000 Post Terminals, 180° from Gap
8CI008B 2958122 8" 3" 400 3000 Post Terminals, 180° from Gap
9CI001B 3941954 9" 1-1/2" 460 1000 Post Terminals, 180° from Gap
9CI002B 3954088 9" 1-1/2" 480 1100 Post Terminals, 180° from Gap
9CI003B 3954240 9" 3" 240 2200 Post Terminals, 180° from Gap
9CI004B 3934713 9" 3" 480 2200 Post Terminals, 180° from Gap
9CI005B 3951715 9" 3" 480 2800 Post Terminals, 180° from Gap
9CI006B 3937944 9-1/2" 3" 240/480 2200 Post Terminals, 180° from Gap
9CI007B 3958485 9-1/2" 3" 480 2000 Post Terminals, 180° from Gap
10CI001B 3954815 10" 3" 480 2400 Post Terminals, 180° from Gap
11CI001B 3937943 11" 3" 240/480 2600 Post Terminals, 180° from Gap
13CI001B 3954816 13" 3" 480 4200 Post Terminals, 180° from Gap
